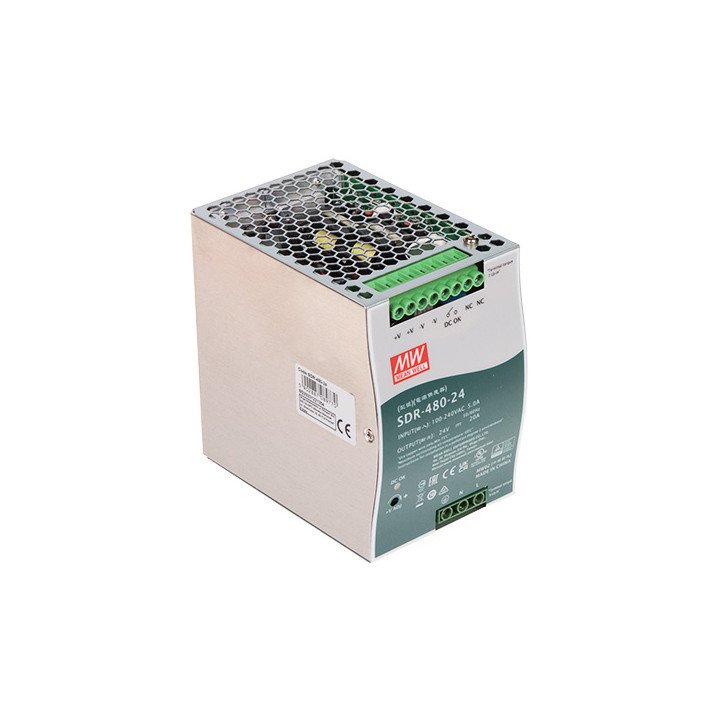

SDR-480-24 MEAN WELL 480W 24V DC DIN Rail Power Supply

SDR-480-24 MEAN WELL 480W 24V DC DIN Rail Power Supply

Mean Well
220,70 €
AR PVN
Buy SDR-480-24 MEAN WELL 480W 24V DC DIN rail power supply. High efficiency, IP67, reliable for industrial use. Shop now!
Piegāde: 5 darba dienas
Share

The SDR-480-24 MEAN WELL is a high-performance 480W single-output switching power supply with a 24V DC output. Designed for DIN rail mounting, it delivers reliable power for industrial automation, control systems, and LED lighting applications.

  • 480W rated power with 24V DC output (20A)
  • Universal AC input 100-240V AC
  • High efficiency up to 93% reduces energy loss
  • IP67 rated for dust and water resistance
  • Protections: short circuit, overload, overvoltage, over temperature
  • Wide operating temperature -30°C to +70°C
  • Certifications: CE, UL, CB, EN, IEC

Ideal for harsh environments, the SDR-480-24 ensures stable and safe power delivery. Order today for your next project.

  • Zīmols
  • Norāde
    SDR-480-24
  • Pieejamās vispirms
    999 vienības:
  • ean13
    5902887089770
  • MPN
    SDR-480-24

  • Dimensions
    125.2 x 125.2 x 113.5 mm
  • Operating temperature
    -30 to +70 °C
  • Weight
    1.2 kg
  • Montāža
    DIN Rail
  • Output voltage
    24 V DC
  • Input voltage
    100-240 V AC
  • Protection
    Short circuit, overload, overvoltage, over temperature
  • Certification
    CE, UL, CB, EN, IEC
  • Rated power
    480 W
  • Nominālā strāva
    20 A
  • Efficiency
    93 %
  • Ingress protection
    IP67
  • Zīmols
    Mean Well
  • Model
    SDR-480-24
  • Artikuls
    SDR-480-24
  • Produkta veids
    Power supply
  • EAN
    5902887089770
