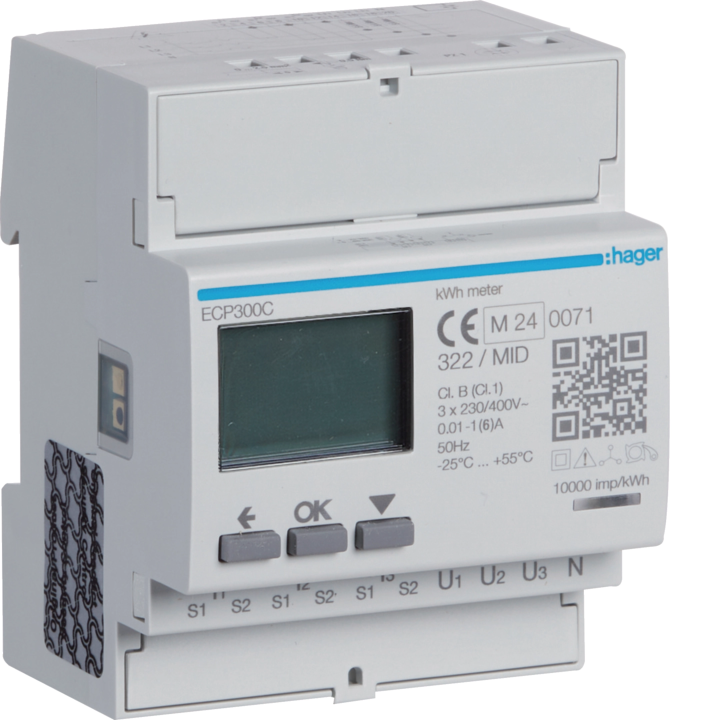

Hager ECP300C 3-Phase kWh Meter via CT 1-5A 4M MID

Hager ECP300C 3-Phase kWh Meter via CT 1-5A 4M MID

Hager
269,61 €
AR PVN
Hager ECP300C 3-phase kWh meter via CT, 1-5A, 4 modules, MID certified. Accurate energy monitoring for commercial use.
Piegāde: 5 darba dienas
Share

The Hager ECP300C is a 3-phase kWh meter designed for current transformer (CT) connection, with a rated secondary current of 1-5A. It is MID certified for billing purposes and features a 4-module DIN rail housing. The meter provides bidirectional metering and includes a pulse output (S0) for remote reading.

  • 3-phase energy measurement via CT (1-5A secondary)
  • MID certified for sub-billing and cost allocation
  • 4-module width for easy DIN rail installation
  • Bidirectional metering for import/export energy
  • S0 pulse output for integration with monitoring systems

Ideal for commercial and industrial applications where accurate energy monitoring and billing are required. The ECP300C ensures reliable performance and compliance with MID standards.

  • Zīmols
  • Norāde
    ECP300C
  • Pieejamās vispirms
    800 vienības:
  • ean13
    3250612231393
  • MPN
    ECP300C

  • Fāzes
    3-phase
  • Montāža
    DIN Rail
  • Pieslēgums
    CT (current transformer)
  • Measurement channels
    3
  • Operating voltage
    230/400V
  • Din modules width
    4M module
  • Zīmols
    Hager
  • Model
    ECP300C
  • Artikuls
    ECP300C
  • Produkta veids
    Energy meter
  • EAN
    3250612231393
  • Max Measuring Current
    5 A
  • Bidirectional Metering
    Yes
  • MID sertificēts
    Yes
