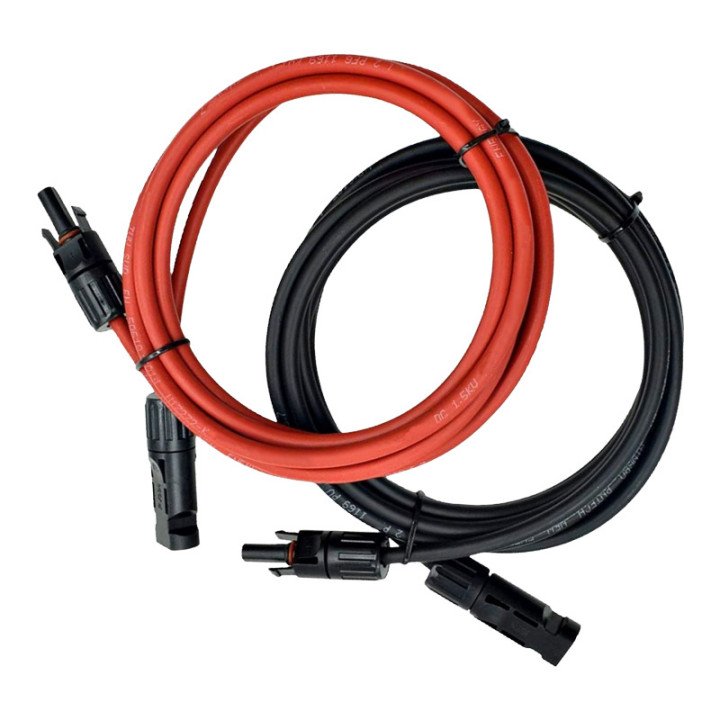

ECOFLOW XS6-2M-RED-BLACK Set of 2 MC4 Solar Extension Cables 2m
Regular price:
12,38 €
(Ietaupi 5,59 €)
Price:
6,79 €
AR PVN
Buy ECOFLOW XS6-2M-RED-BLACK set of 2 MC4 solar extension cables, 2m each. UV-resistant, tinned copper, 6mm², for photovoltaic systems. Durable and reliable.
The ECOFLOW XS6-2M-RED-BLACK set includes two MC4 extension cables, each 2 meters long, designed for photovoltaic applications. These single-core cables feature multi-stranded tinned copper conductors for high flexibility and are insulated with halogen-free cross-linked plastic. They comply with PN-EN 50618 and PN-EN 60228 standards, ensuring resistance to fire, UV radiation, ozone, and harsh weather conditions.
- High-quality construction: Tinned copper conductor with 6 mm² cross-section, rated for 1.0/1.0 kV AC and 1.5 kV (1.8 kV) DC.
- Durable and weather-resistant: UV-resistant, ozone-resistant, and suitable for outdoor and direct burial use. Operating temperature range from -40°C to +90°C.
- Long service life: Expected lifespan of 25 years, with resistance to hydrolysis, ammonia, acids, and alkalis.
- Easy installation: Pre-terminated MC4 connectors (male and female) for quick and secure connections.
Ideal for extending solar panel connections in residential and commercial PV systems. The set includes two cables (one red, one black) for polarity identification.
-
Operating temperature range-40 to +90 °C
-
Cable length2 m
-
Conductor materialTinned Copper
-
Connector genderMale-Female
-
Rated voltage ac1.0/1.0 kV
-
Operating voltage dc1.5 (1.8) kV
-
Insulation resistance1000 MΩ/km
-
Test voltage6500 V (AC)
-
Outer diameter6.2 mm
-
Nominal insulation wall thickness0.7 mm
-
Nominal sheath wall thickness0.8 mm
-
Fire resistancePN-EN 60332-1, LSOH
-
Expected service life25 years
-
Cable typeH1Z2Z2-K
-
ZīmolsEcoFlow
-
ModelXS6-2M-RED-BLACK
-
Artikuls079539
-
Produkta veidsSolar extension cable set
-
ColorRed
-
Connector / Interface TypeMC4 (solar)
-
Outdoor / UV ResistantYes
-
Conductor Cross-Section6.00 mm²
-
Maximum Single Wire Diameter0.31 mm
-
Max Conductor Resistance at 20°C5.09 mΩ/m
-
Min Insulation Resistance at 20°C580 MΩ/km
