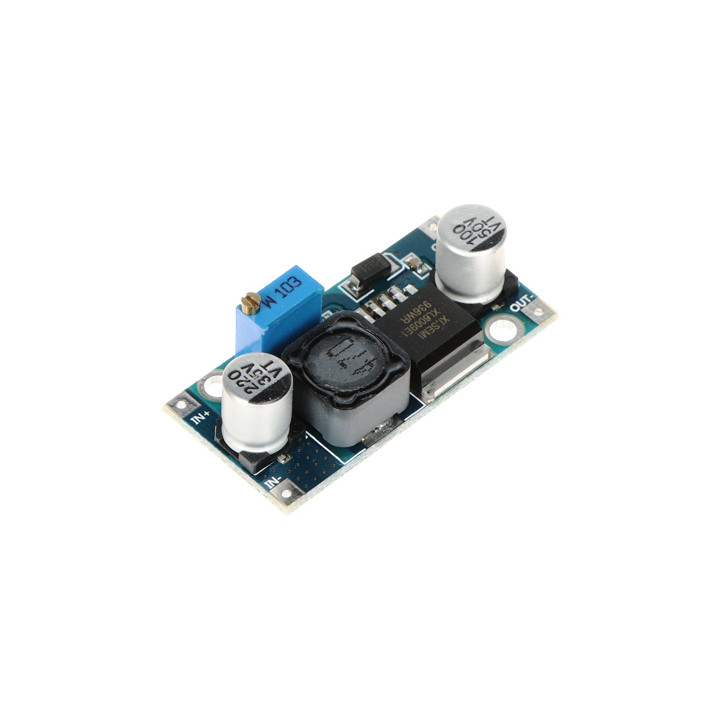

PZU-XL6009-V2 DC/DC Converter Module

The PZU-XL6009-V2 is a versatile DC/DC converter module based on the XL6009 IC. It can step up or step down input voltages to a stable adjustable output, making it suitable for a wide range of power supply applications.

• Wide input voltage range: Supports 5V to 32V DC input.
• Adjustable output: Output voltage can be set from 1.25V to 35V DC via a trimmer potentiometer.
• High efficiency: Up to 94% conversion efficiency reduces heat and power loss.
• Output current: Up to 4A (depending on input/output differential and heat dissipation).
• Protection features: Built-in thermal shutdown and current limiting.

This module is ideal for DIY electronics, battery charging, LED drivers, and general power regulation. Ensure adequate heatsinking for high current applications.
