Besen BS20-BC-22KW-APP Wall Charger for Electric Cars 22kW

Besen BS20-BC-22KW-APP Wall Charger for Electric Cars 22kW

BESEN
€407.21
Tax included
Upgrade to fast EV charging with the Besen BS20 22kW wall charger. App control, IP66, IK10, 32A. Buy now!
Delivery: 5 business days
Share

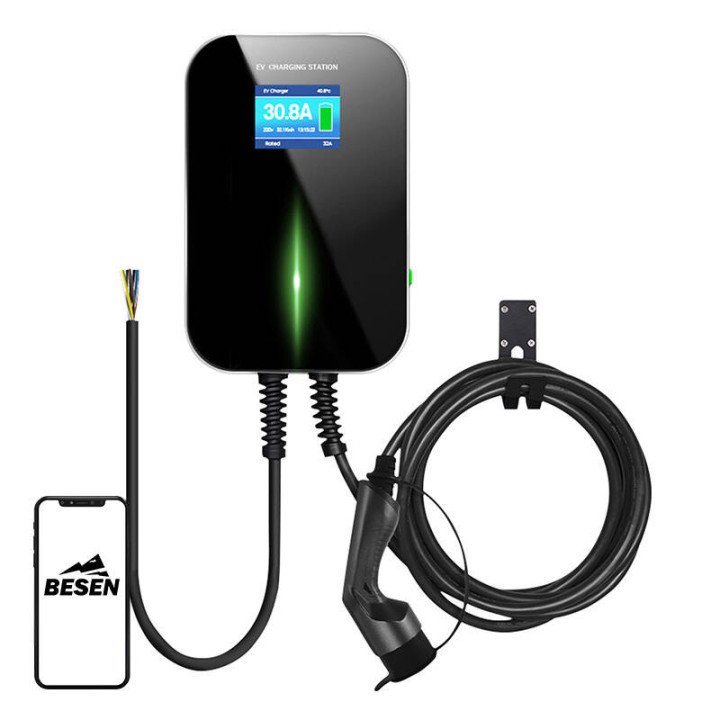

The Besen BS20-BC-22KW-APP is a high-performance wall-mounted electric vehicle charger delivering up to 22 kW of charging power. Designed for both residential and commercial use, it supports single-phase (7.2 kW) and three-phase (22 kW) operation, making it suitable for a wide range of EVs including cars, buses, and ambulances.

  • High power output: Up to 22 kW three-phase / 7.2 kW single-phase with 32A maximum current.
  • Durable construction: Stainless steel and aluminum housing with IP66 water/dust resistance and IK10 impact protection.
  • Smart control: Manage charging via the EVSEMaster app (Bluetooth pairing) – schedule, monitor history, and update firmware remotely.
  • Advanced safety: Includes under-voltage, over-voltage, short-circuit, overheat, and lightning protection plus Type A / Type A+6mA DC RCD.
  • User-friendly interface: 3.5" color LCD display shows charging status; optional Ethernet, Wi-Fi, 4G, or Bluetooth connectivity.
  • Easy installation: Can be mounted on a wall or on the ground with a 5 m tethered cable.

With certifications including CE, FCC, CSA, RoHS, and ETL, the Besen BS20 is a reliable and efficient charging solution for any EV owner.

  • Brand
  • Reference
    069530
  • In stock
    507 Items
  • EAN13
    5906168438783
  • MPN
    BS20-BC-22KW-APP

  • Connectivity
  • IP rating
    IP66
  • Dimensions
    295 x 195 x 65 mm
  • Weight
    6-8 kg
  • Voltage
    230/400V
  • Phases
    Single/Three-phase
  • Certifications
    CE, FCC, CSA, RoHS, ETL
  • Ambient temperature
    -25 ~ 55 °C
  • Display
    LCD
  • App control
    true
  • Led indicator
    Yes
  • Charger type
    Wall-mounted
  • Connector type
    Type 2
  • Input frequency
    47 ~ 63 Hz
  • Cable length
    5 m
  • Protection
    Under-voltage, over-voltage, short-circuit, overheat, lightning
  • Rcd
    Type A / Type A+6mA DC
  • Ambient humidity
    0-95 %
  • Current adjustment
    Yes
  • Mounting method
    Wall / ground
  • Brand
    Besen
  • Model
    BS20-BC-22KW-APP
  • SKU
    069530
  • Product Type
    EV charger
  • EAN
    5906168438783
  • App
    EVSEMaster
  • Maximum Current
    32A
  • Maximum Charging Power
    22 kW
  • RFID Authentication
    false
  • Impact Rating (IK)
    IK10
  • Charge Scheduling
    true
