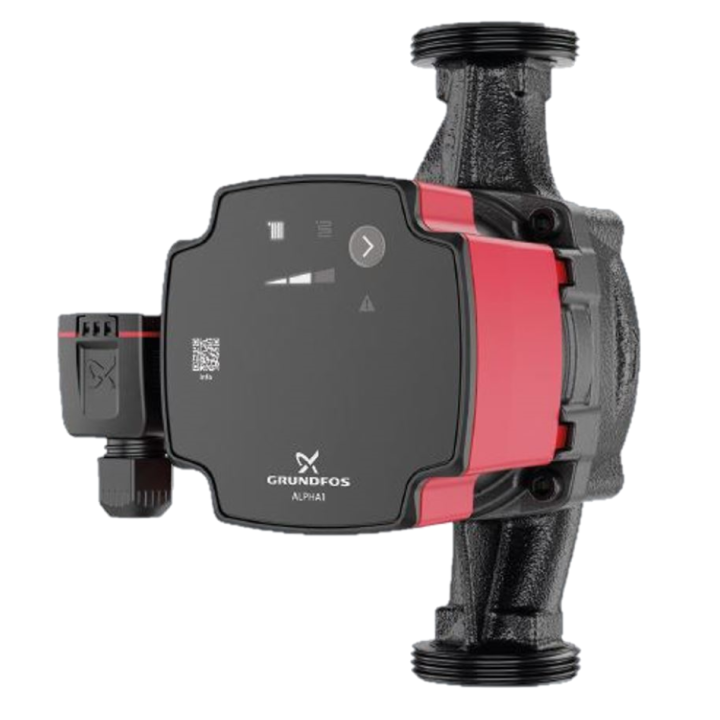

Grundfos Alpha1 Circulating Pump 32-60 220-240V

Grundfos Alpha1 Circulating Pump 32-60 220-240V

GRUNDFOS
€252.45
Tax included
Compact circulation pump 2.3m³/h flow, 30kPa pressure, 220-240V single-phase, cast-iron housing, optimized for heating systems.
On backorder
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Grundfos Alpha1 is a compact circulating pump for heating and cooling systems. Cast-iron pump body GG 15 (GJL-150) ensures durability. Single-phase 220–240V motor with 0.045kW power consumption. Maximum working pressure 10 bar, rated flow 2.28 m³/h, maximum static head 6m.

  • Rated flow 2.28 m³/h at 30 kPa
  • Maximum flow 3.6 m³/h
  • 220–240V single-phase 50Hz
  • 10 bar maximum working pressure
  • Cast-iron GG 15 construction
  • 0.045 kW motor power

  • Brand
  • Reference
    DKQ763
  • EAN13
    5715467403886
  • MPN
    DKQ763

  • Weight
    2.295 kg
  • Frequency
    50 Hz
  • Supply voltage
    220–240 V
  • Phase
    Single
  • Rated current
    0.45 A
  • Pump Type
    Centrifugal
  • Max working pressure
    10 bar
  • Rated flow
    2.28 m³/h
  • Motor power
    0.045 kW
  • Max static head
    6 m
  • Max flow
    3.6 m³/h
  • Pressure at BEP
    30 kPa
