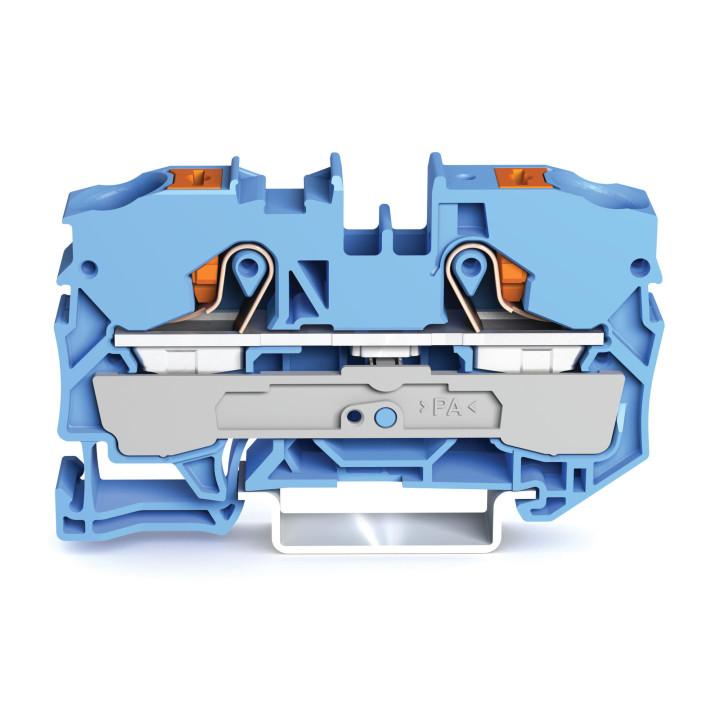

WAGO Push-Button Terminal Block 1P 2-Contact 10mm² Blue

WAGO Push-Button Terminal Block 1P 2-Contact 10mm² Blue

€2.11
Tax included
WAGO spring-loaded push-button terminal block, 1 pole 2 contacts, 10mm² 57A 800V, DIN rail mount, blue color.
On backorder
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

WAGO TOP JOB push-button terminal blocks enable quick and reliable installation of all conductor types. Spring-loaded design eliminates loose screws and provides maintenance-free operation. Installation is faster and easier than screw terminals. Supports labeling with WMB labels or direct printing using SmartPrinter software. ATEX-protected with industry-wide approvals. Widely used in control cabinets, mobile equipment and demanding industrial applications.

  • 1 pole, 2 contacts per level
  • Conductor range 0.5-16mm² (stranded), 2.5-16mm² (solid)
  • Rated 57A at 800V
  • Spring-loaded push terminals
  • DIN rail 55mm mount

  • Reference
    CIE551
  • EAN13
    4055143736077
  • MPN
    CIE551

  • Operating temperature
    105 °C
  • Mounting
    DIN rail 55mm
  • Rated voltage
    800 V
  • Connection type
    Spring clamp
  • Height
    67.6 mm
  • Rated current
    57 A
  • Width
    10 mm
  • EAN
    4055143736077
  • Positions per level
    2
  • Conductor range (solid)
    2.5-16 mm²
  • Levels
    1
  • Conductor range (stranded with ferrule)
    2.5-10 mm²
  • Conductor range (stranded, no ferrule)
    0.5-16 mm²
  • Conductor range (multi-core)
    0.5-10 mm²
  • Housing
    Thermoplastic
