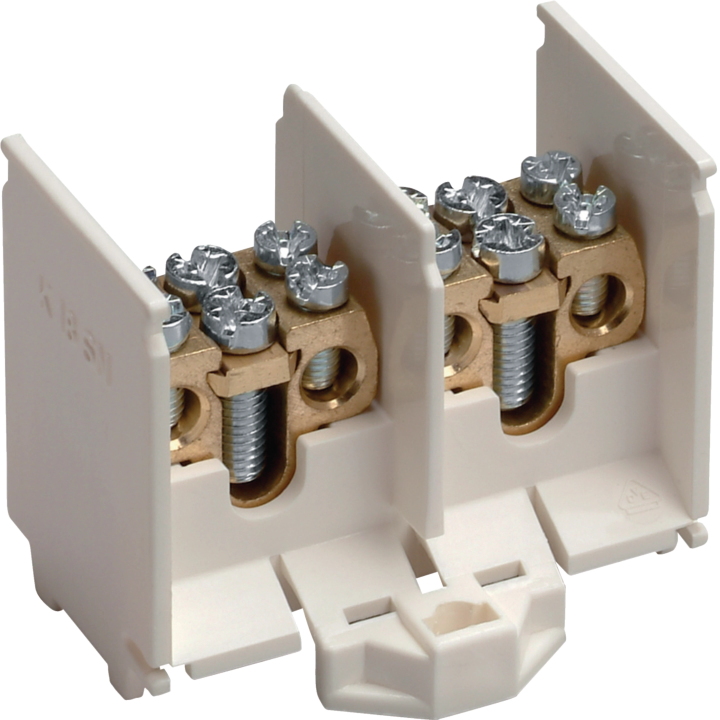

Hager K18SN Branch Terminal, 90SL, 2P, 1x35 mm² / 2x25 mm²

The Hager K18SN is a high-quality branch / distribution terminal from the 90SL series, designed for reliable power distribution in electrical installations. It features a screw clamp connection and accommodates conductors up to 1x35 mm² or 2x25 mm² on the main side, with 2 outputs per pole up to 16 mm².

• 2 poles for single-phase or two-phase distribution
• Screw clamp connection ensures secure and durable wiring
• Main conductor cross-section: 1x35 mm² / 2x25 mm²
• Branch outputs: 2x16 mm² per pole
• Compact dimensions: 60 x 52 x 49 mm
• Rated voltage: 400 V
• Rated current: 125 A

Ideal for use in distribution boards and junction boxes, the K18SN simplifies branching without additional connectors. Trust Hager for safe and efficient electrical connections.
