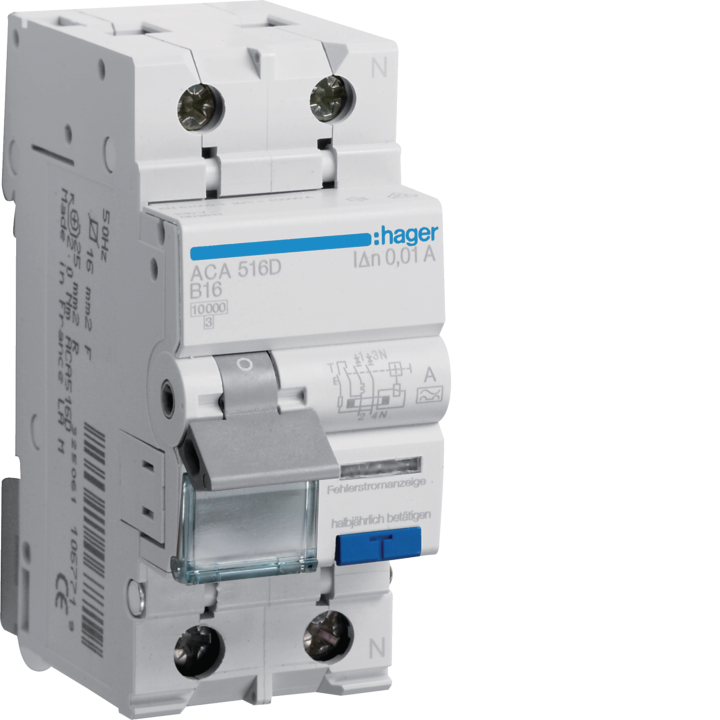

Hager ACA516D RCBO 1P+N 10kA B-16A 10mA Type A

The Hager ACA516D is a combined residual current circuit breaker (RCBO) that provides both overcurrent and residual current protection in a single device. Designed for 1P+N systems, it features a rated current of 16A, a B tripping curve, and a breaking capacity of 10kA. The residual current protection is 10mA with Type A sensitivity, making it suitable for protecting against sinusoidal AC and pulsating DC fault currents.

• Combined protection: Overcurrent (MCB) and residual current (RCD) in one unit saves space in the distribution board.
• High breaking capacity: 10kA ensures reliable operation under fault conditions.
• Type A RCD: Detects both AC and pulsating DC residual currents for enhanced safety.
• Compact design: 2-module width fits standard DIN rail enclosures.

Ideal for residential and commercial installations where both overcurrent and earth leakage protection are required. Ensure compliance with electrical regulations by using Hager RCBOs.
