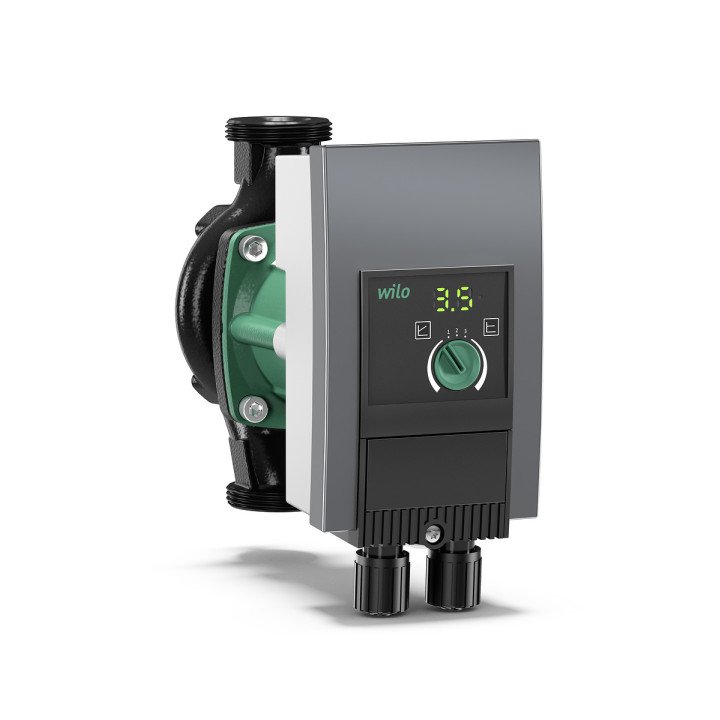

WILO YONOS MAXO 25/0.5-12 Circulation Pump PN10

WILO YONOS MAXO 25/0.5-12 Circulation Pump PN10

WILO
999,05 €
Maksudega
Energy-efficient EC circulation pump with synchronous motor for heating systems. 7.15 m³/h rated capacity, 12 m max head, 0.3 kW power, single-phase 230V.
On backorder
Jaga

Teavita, kui on jälle saadaval

Interested in this product? Drop us an email and we will let you know when it's available for order.

WILO YONOS MAXO 25/0.5-12 is an energy-efficient circulation pump equipped with EC (electronically commutated) synchronous motor technology. Automatically adjusts power consumption to system demands, ideal for heating, cooling loops and industrial circulation systems.

  • EC synchronous motor with adaptive power control
  • Rated capacity 7.15 m³/h, max 11.83 m³/h
  • Max head 12.13 m, operating pressure up to 10 bar
  • Single-phase 230V, 0.3 kW, 1.33 A rated current
  • Cast iron housing, polypropylene impeller for durability
  • Compact footprint 243×338×295 mm, 5.3 kg

  • Bränd
  • Tootekood
    ANI296
  • ean13
    4048482235882
  • MPN
    ANI296

  • Weight
    5.3 kg
  • Phases
    1
  • Housing material
    Cast iron GG 20
  • Frequency
    50/60 Hz
  • Power input
    0.3 kW
  • Height
    295 mm
  • Rated current
    1.33 A
  • Connection
    Terminal Box
  • Width
    243 mm
  • Depth
    338 mm
  • Motor Type
    EC synchronous
  • Pump Type
    Circulation pump
  • Max Pressure
    10 bar
  • Impeller material
    Polypropylene PP-GF
  • Rated Capacity
    7.148 m³/h
  • Max Head
    12.13 m
