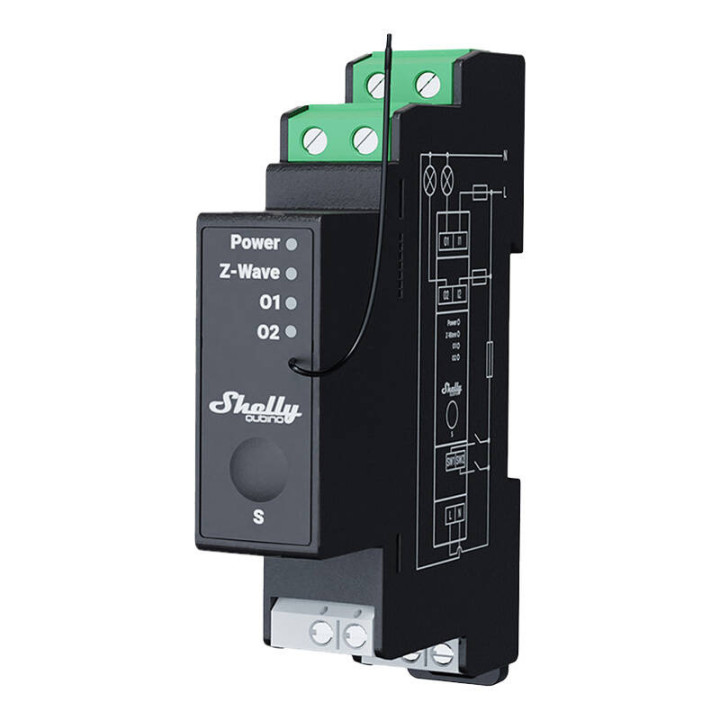

Shelly Qubino Pro 2PM DIN-kiskon rele, 2-kanavainen, Z-Wave (tehonmittaus)
Price:
91,58 €
Sisältää alv:n
Control lighting and devices with Shelly WavePro2PM Z-Wave relay. 2 channels, 16A each, energy metering, DIN rail mount. Smart home automation.
The Shelly WavePro2PM is a 2-channel DIN rail relay with energy metering, designed for smart home automation. It features potential-free contacts for flexible control of lighting, heating, ventilation, and other electrical devices. With a load capacity of up to 16 A per channel (25 A total) and support for 110-240 V AC, it handles demanding loads reliably. The built-in energy metering function tracks consumption, helping you reduce electricity bills.
- Z-Wave communication for seamless integration with smart home systems
- 2 independent channels with potential-free contacts
- Energy metering for real-time power monitoring
- DIN rail mounting for easy installation in distribution boards
- Overheating, overload, and overvoltage protection for safe operation
- Compact design: 94 x 19 x 69 mm
Use the Shelly app or any Z-Wave controller to create schedules, scenes, and automation sequences. Perfect for residential and commercial applications.
-
IP ratingIP20
-
Dimensions94 x 19 x 69 mm
-
Communication protocolZ-Wave
-
Weight75 g
-
Mounting typeDIN Rail
-
Housing materialplastic
-
Humidity30 to 70 % RH
-
Max altitude
-
ColourGrey
-
Ambient temperature-20 to 40 °C
-
CpuZ-Wave S800
-
Power measurementYes
-
Overload protectionYes
-
Overvoltage protectionYes
-
Rated current16 A per channel, 25 A total A
-
Operating voltage110 - 240 V AC
-
Rf frequency868.4; 865.2; 869.0; 921.4; 908.4; 916; 919.8; 922.5; 919.7-921.7-923.7; 868.1; 920.9 MHz
-
BrandShelly
-
ModelWavePro2PM
-
SKU063548
-
Product TypeDIN rail relay
-
EAN3800235269121
-
Device TypeRelay module
-
Compatible App / EcosystemShelly
-
Dry Contact (voltage-free output)Yes
-
Voice Control SupportYes
-
Number of Gangs / Channels2
-
Maximum Load3840 W
-
Protection Against OverheatingYes
-
Range Indoors40 m
-
Z-Wave AmplifierYes
-
Maximum Transmit Power25 mW
