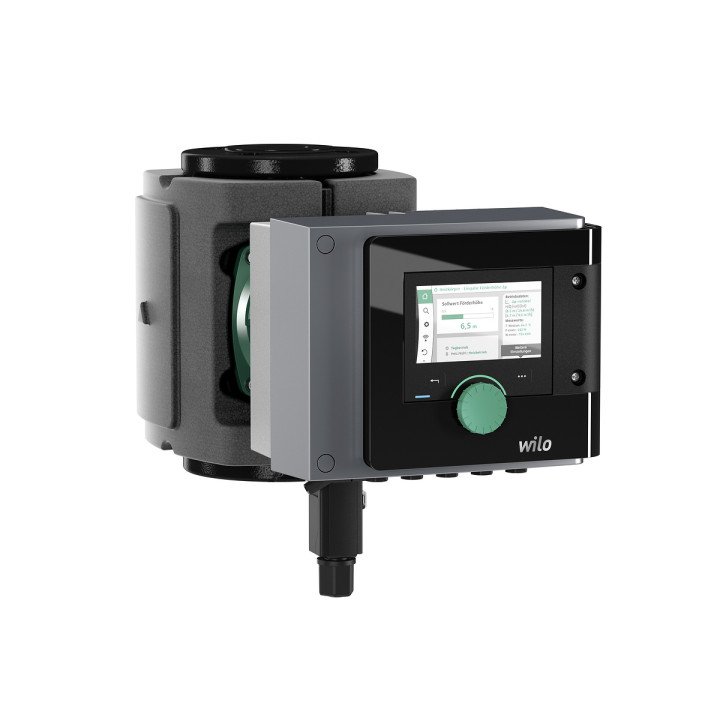

WILO Stratos Maxo 80/0.5-16 PN10 Circulation Pump CPC749

WILO Stratos Maxo 80/0.5-16 PN10 Circulation Pump CPC749

WILO
6 717,44 €
Sisältää alv:n
High-capacity circulation pump with 42.54 m³/h nominal flow, 1.64 kW motor, and cast iron GG25 body. PN10 rated to 10 bar, EEI 0.17.
On backorder
Jaa

Ilmoita minulle, kun käytettävissä

Interested in this product? Drop us an email and we will let you know when it's available for order.

Wilo Stratos Maxo 80 is a high-performance circulation pump designed for large-scale heating and cooling systems. With its powerful 1.64 kW motor and robust cast iron body, it delivers reliable performance in demanding applications.

  • 42.54 m³/h nominal flow with 75.92 m³/h maximum
  • 1.64 kW motor with 7.14 A nominal current
  • 91.67 kPa maximum pressure with 15.98 m maximum head
  • Single-phase 50/60 Hz operation
  • Cast iron GG 25 pump body with PP-GF impeller
  • Energy Efficiency Index 0.17, PN10 rating

  • Tuotemerkki
  • Viite
    CPC749
  • EAN13
    4062679195476
  • Valmistajan tuotenumero (MPN)
    CPC749

  • Weight
    36.17 kg
  • Phases
    Single-phase
  • Frequency
    50/60 Hz
  • Nominal Current
    7.14 A
  • Nominal flow rate
    42.54 m³/h
  • Maximum flow rate
    75.92 m³/h
  • Maximum static head
    15.98 m
  • Pump body material
    Cast iron GG 25 (GJL-250)
  • Impeller material
    Polypropylene (PP-GF)
  • Maximum working pressure
    10 bar
  • Motor power input
    1.64 kW
  • Maximum Pressure at BEP
    91.67 kPa
  • Dual Pump
    No
  • Energy Efficiency Index
    0.17 EEI
