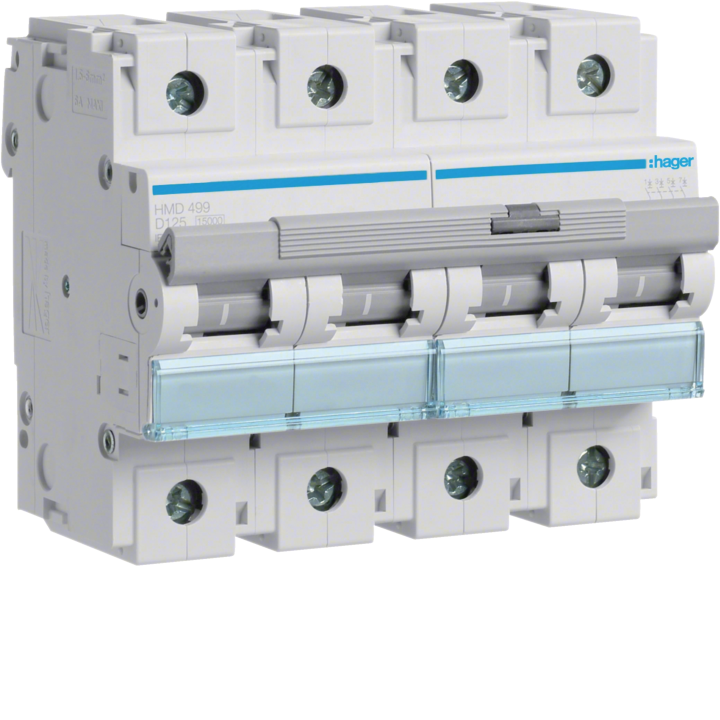

Hager HMD499 Miniature Circuit Breaker 4P D 125A 15kA (6 Modules)

Hager HMD499 Miniature Circuit Breaker 4P D 125A 15kA (6 Modules)

Hager
228,21 €
Sisältää alv:n
Hager HMD499 four-pole D-curve 125A MCB, 15kA breaking capacity, 6 DIN modules. High-current protection for inductive and motor circuits.
Delivery: 5 business days
Jaa

The Hager HMD499 is a four-pole miniature circuit breaker rated 125A with a D tripping characteristic, designed for high-current three-phase circuits with strong inrush.

  • 4-pole, 125A rating for heavy three-phase loads
  • D trip curve suited to motors, transformers and high inrush equipment
  • 15kA breaking capacity for installations with elevated fault levels
  • 6 DIN modules wide with standard DIN rail mounting
  • Robust Hager protection for industrial and commercial feeds

A high-rated MCB for protecting demanding three-phase circuits against overload and short circuit.

  • Tuotemerkki
  • Viite
    HMD499
  • Varastossa
    800 Tuotteet
  • EAN13
    3250613230364
  • Valmistajan tuotenumero (MPN)
    HMD499

  • Communication protocol
    none
  • Phases
    Three-phase
  • Mounting type
    DIN Rail
  • Rated voltage
    400V
  • Rated current
    125 A
  • Trip curve
    D
  • Brand
    Hager
  • Model
    HMD499
  • SKU
    HMD499
  • Product Type
    Miniature circuit breaker (MCB)
  • EAN
    3250613230364
  • Device Type
    MCB
  • Smart / Connected
    No
  • Number of Poles
    4P
  • DIN Module Width
    6 modules
  • Breaking Capacity
    15 kA
