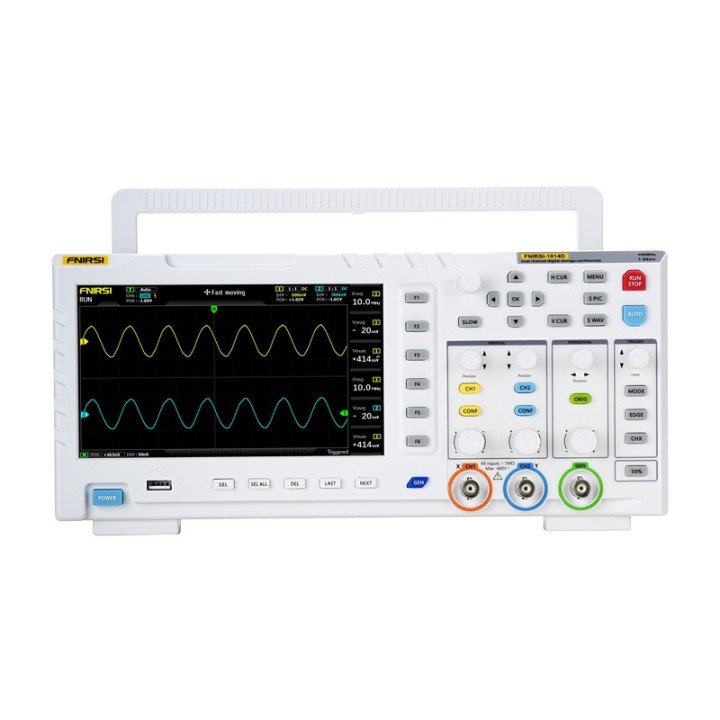

FNIRSI 1014D 2-in-1 Oscilloscope Signal Generator

The FNIRSI 1014D is a compact 2-in-1 digital oscilloscope and signal generator designed for electronic service, R&D, education, and hobbyists. It features two input channels with 100 MHz bandwidth and 1 GSa/s sampling rate, enabling detailed analysis of analog and digital signals. The 7-inch TFT color display (800×480 px) provides clear waveform visualization.

• 2-in-1 functionality: Oscilloscope and DDS signal generator in one device.
• High performance: 100 MHz bandwidth, 1 GSa/s sampling, 1 MΩ input impedance.
• Built-in DDS generator: 14 standard waveforms up to 10 MHz (sine), adjustable in 1 Hz steps.
• Waveform capture: Save and output real waveforms from the oscilloscope.
• Large storage: 1 GB internal memory for up to 1000 waveforms and 1000 screenshots.
• Analysis tools: FFT, X-Y mode, cursor measurements, auto trigger.
• Overvoltage protection: Safe measurement up to 400V with x10 probe.

Perfect for diagnosing circuits, testing prototypes, and learning waveform analysis. Data export via USB.
