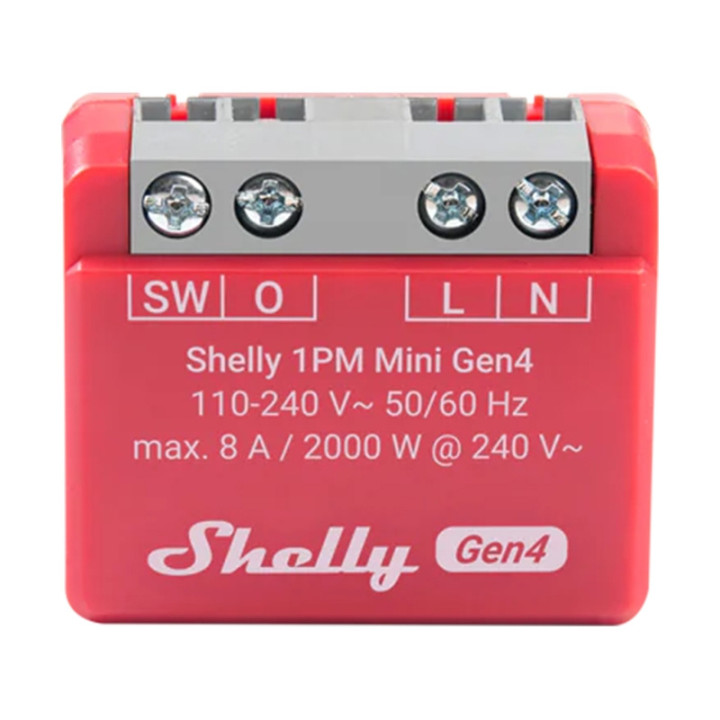

„Shelly 1PM Mini Gen4“ valdiklis „Zigbee/Matter“.
Kaina:
24,96 €
Su mokesčiais
Control and monitor energy consumption with Shelly 1PM Mini Gen4. Supports Wi-Fi, Zigbee, Matter. Compact size fits wall boxes. Buy now!
The Shelly 1PM Mini Gen4 is a compact smart relay and energy meter that enables remote control and accurate power measurement of electrical devices. It supports Wi-Fi, Zigbee, Bluetooth, and Matter protocols, ensuring seamless integration with popular smart home ecosystems like Google Home, Amazon Alexa, SmartThings, and KNX. Its small size allows mounting behind switches or outlets in standard wall boxes.
- Dual functionality: Acts as a relay (NO contact, 1 pole) and a power meter with overvoltage, overload, and over-power protection.
- Multi-protocol support: Wi-Fi 802.11 b/g/n, Zigbee, Bluetooth, and Matter for flexible automation.
- Energy monitoring: Measures real-time power consumption to help optimize energy costs.
- Advanced automation: Supports schedules, webhooks, and Shelly Script language for custom scenarios.
- Easy installation: Fits into wall boxes with screw terminals for wires up to 2.5 mm².
Perfect for smart home enthusiasts, the Shelly 1PM Mini Gen4 provides reliable control and monitoring in a tiny package. Works locally or via cloud, with no mandatory hub required.
-
Dimensions29 x 34 x 16 ± 0.5 mm
-
Communication protocolBluetooth
KNX
Matter
Wi-Fi
Zigbee -
Operating temperature-20°C to 40°C
-
Weight18 ±1 g
-
Housing materialplastic
-
Wire cross section0.2 to 2.5 mm²
-
Wire stripping length6 to 7 mm
-
Operating humidity30% to 70% RH
-
Sensor typeTemperature & Humidity Sensor
-
MountingWall
-
Housing colorRed
-
Power measurementYes
-
RangeUp to 30 m
-
Maximum altitude2000 m
-
Measured parametersTemperature
-
Operating voltage110-240 V AC
-
BrandShelly
-
Model1PMMiniGen4
-
SKU076934
-
Product TypeSmart Relay / Energy Meter
-
EAN3800238070809
-
App EcosystemAmazon Alexa
Google home
Shelly
SmartThings
ZHA
Zigbee2mqtt -
Automation / ScenesYes
-
Requires Hub / GatewayNo
-
Wi-Fi Protocol
-
Maximum Switching Current8 A / 240 V AC
-
External ProtectionTripping characteristic B or C, max. rated current 10 A, min. breaking capacity 6 kA, energy limiting class 3
-
Maximum Switching Voltage240 V AC
-
Relay TypeNO contact, 1 pole, µ contact
-
Maximum tightening torque of screw terminals0.4 Nm
-
RF bandwidth2412 - 2472 MHz
-
Connector ColorGray
-
Overvoltage / Cut-off ProtectionYes
-
Overload / Cutout ProtectionYes
-
Over-power Protection / Cut-offYes
-
Built-in Internal Temperature SensorYes
