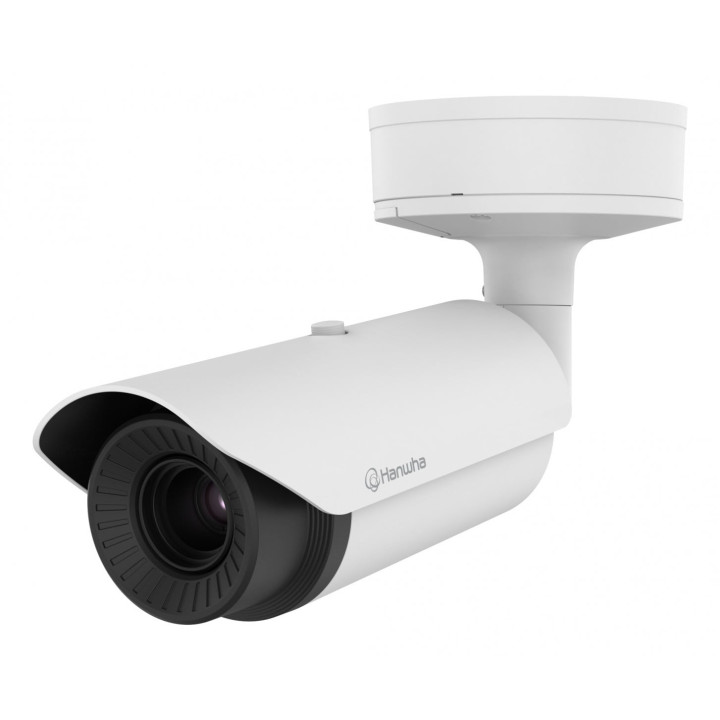

Hanwha Vision TNO-L4040TR šiluminio vaizdo kamera

Hanwha Vision TNO-L4040TR šiluminio vaizdo kamera

Hanwha Vision
14 405,20 €
Su mokesčiais
Professional bi-spectrum thermal camera with 384x288 VOx sensor, 30Hz frame rate, temperature measurement up to 2000°C, and PoE connectivity. Ideal for security and industrial monitoring.
Piegāde: 5 darba dienas
Dalintis

The Hanwha Vision TNO-L4040TR is a high-performance thermal imaging camera designed for demanding surveillance and industrial applications. Featuring an uncooled VOx microbolometer detector with 384x288 pixel resolution and a 30Hz refresh rate, it delivers crisp thermal video even in complete darkness. The bi-spectrum design combines thermal and visible-light imaging for comprehensive situational awareness.

  • High Sensitivity: NETD < 50 mK ensures excellent thermal contrast.
  • Wide Temperature Range: Measures from -40°C to 2000°C with ±2°C accuracy.
  • Long Detection Range: Detects human-sized targets up to 1800 m.
  • PoE Connectivity: Simplifies installation with power and data over a single cable.
  • IP66 Rated: Weatherproof housing for outdoor use.
  • ONVIF Compliant: Integrates seamlessly with major VMS platforms.

Ideal for perimeter security, fire prevention, and critical infrastructure monitoring, the TNO-L4040TR provides reliable thermal imaging in any environment.

  • Prekės ženklas
  • Kodas
    1781852
  • Yra sandėlyje
    999 Prekės
  • ean13
    8801089214041
  • MPN
    TNO-L4040TR

  • Connectivity
    RJ45 / Ethernet (PoE)
  • IP rating
    IP66
  • Power source
    PoE
  • Lens focal length
    9.1 mm
  • Form factor
    IP network camera (dual / bi-spectrum)
  • Detector type
    Uncooled VOx microbolometer
  • Ir sensor resolution
    384×288 px
  • Compatible platform
    NVR / VMS
  • Detection range
    1800 m
  • Laser rangefinder
    No
  • Brand
    Hanwha Vision
  • Model
    TNO-L4040TR
  • SKU
    1781852
  • Product Type
    Thermal Imaging Camera
  • EAN
    8801089214041
  • ONVIF Support
    Yes
  • Field of View (Horizontal)
    35 °
  • Measurement Accuracy
    ±2°C / ±2%
  • Temperature Measurement Min
    -40 °C
  • Temperature Measurement Max
    2000 °C
  • Spectral Range
    8–14 µm
  • Frame / Refresh Rate
    30 Hz
  • Number of Color Palettes
    6
  • Enhanced / Output Resolution
    640×480 px
  • Visible-Light Camera (dual / bi-spectrum)
    Yes
  • Digital / Optical Zoom
    4 x
  • Built-in GPS
    No
