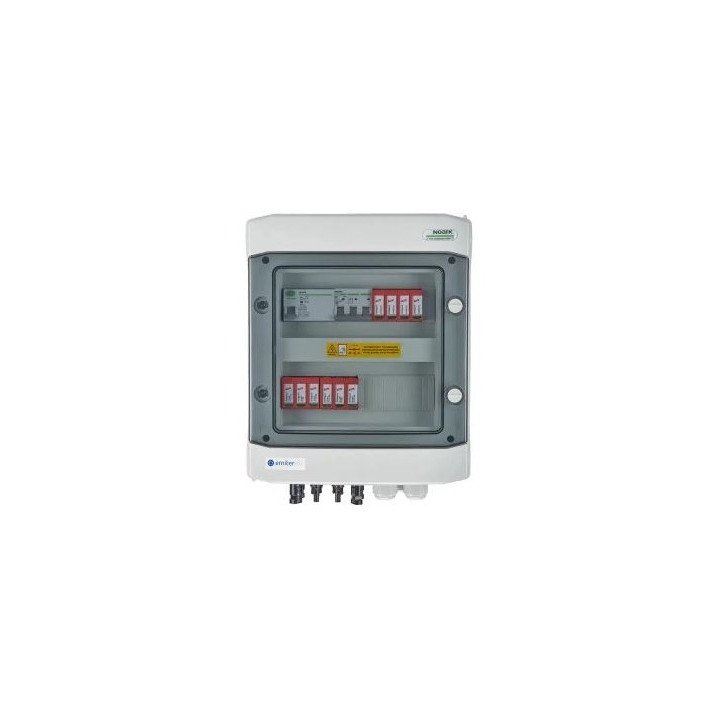

EMITER EM-588N_DCAC Combined AC+DC Surge Protective Device (SPD) Type 2, IP65, 20A, 300mA

EMITER EM-588N_DCAC Combined AC+DC Surge Protective Device (SPD) Type 2, IP65, 20A, 300mA

EMITER
349,74 €
Su mokesčiais
Protect your PV system with EMITER EM-588N_DCAC SPD Type 2, IP65 enclosure, 20A AC/DC, 300mA RCD. Order now!
Piegāde: 5 darba dienas
Dalintis

The EMITER EM-588N_DCAC is a combined AC+DC surge protective device (SPD) Type 2, designed for photovoltaic systems. It features an IP65-rated enclosure, making it suitable for outdoor or harsh environments. The device integrates two PV string inputs and two MPPT inputs, with a DC SPD rated for 1000V and an AC SPD rated for 20A three-phase, plus a Type A RCD with 40A/300mA. This all-in-one solution simplifies installation and ensures comprehensive protection against surges on both the DC and AC sides.

  • Type 2 SPD for AC and DC circuits
  • IP65 enclosure – weatherproof and dust-tight
  • 2 PV string inputs and 2 MPPT inputs
  • DC SPD 1000V, AC SPD 20A 3-phase
  • RCD Type A 40A/300mA integrated
  • Rated current 20A, residual current 300mA

Ideal for solar installations requiring a compact, robust surge protection unit. Easy to mount and connect.

  • Prekės ženklas
  • Kodas
    1713046
  • Yra sandėlyje
    999 Prekės
  • ean13
    5904905313478
  • MPN
    EM-588N_DCAC

  • Application
    Combined AC+DC
  • Mounting type
    Enclosed switchgear (IP65)
  • Mppt inputs
    2
  • Rated current
    20 A
  • Brand
    EMITER
  • Model
    EM-588N_DCAC
  • SKU
    1713046
  • Product Type
    Combined AC+DC surge protective device (SPD)
  • EAN
    5904905313478
  • Number of Poles
    3P
  • Ingress Protection (IP)
    IP65
  • Residual current
    300 mA
  • SPD Type / Class
    Type 2
  • Max Discharge Current (Imax, 8/20µs)
    20 kA
  • Nominal Discharge Current (In, 8/20µs)
    10 kA
  • Nominal Voltage (Uc)
    1000V DC V
  • PV String Inputs
    2
