Электромагнитный замок VidiLine VIDI-AC-ZW280, постоянный ток (DC) 12/24V, 280 кг

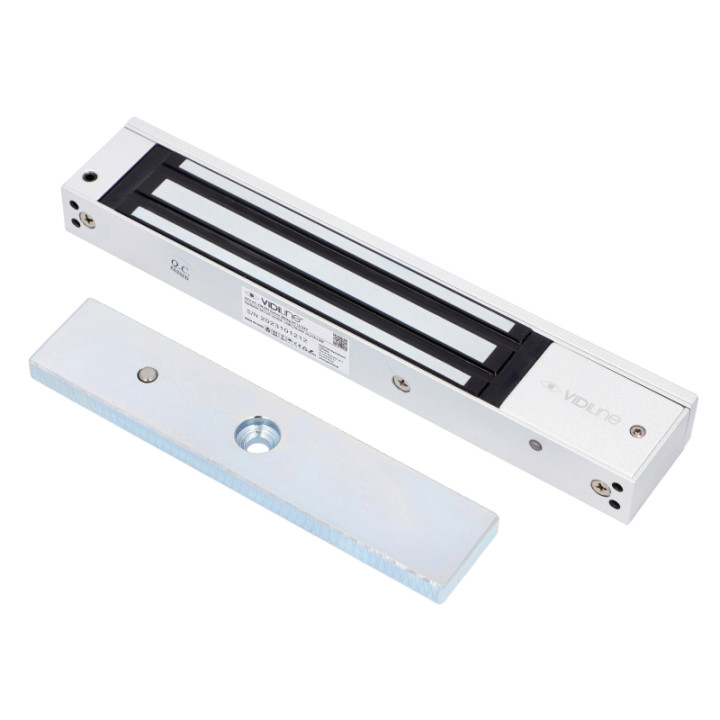

The VidiLine VIDI-AC-ZW280 is a high-quality electromagnetic lock designed for access control systems. With a holding force of 280 kg, it provides reliable security for doors. The lock operates on DC 12/24 V and draws 420/210 mA respectively. It features a NC (normally closed) type, meaning the door is locked when power is applied and unlocked when power is removed. An integrated status LED indicates the lock state.

• Holding force: 280 kg
• Voltage: DC 12/24 V
• Current: 420/210 mA
• Lock type: NC
• Dimensions (lock): 250 × 46.5 × 26 mm
• Dimensions (armature): 180 × 38 × 11.5 mm
• Status LED: Yes

Note: A dedicated mounting kit VIDI-AC-LZ280 (sold separately) is required for installation.
