Надстройка SSR (Shelly Таблетка)

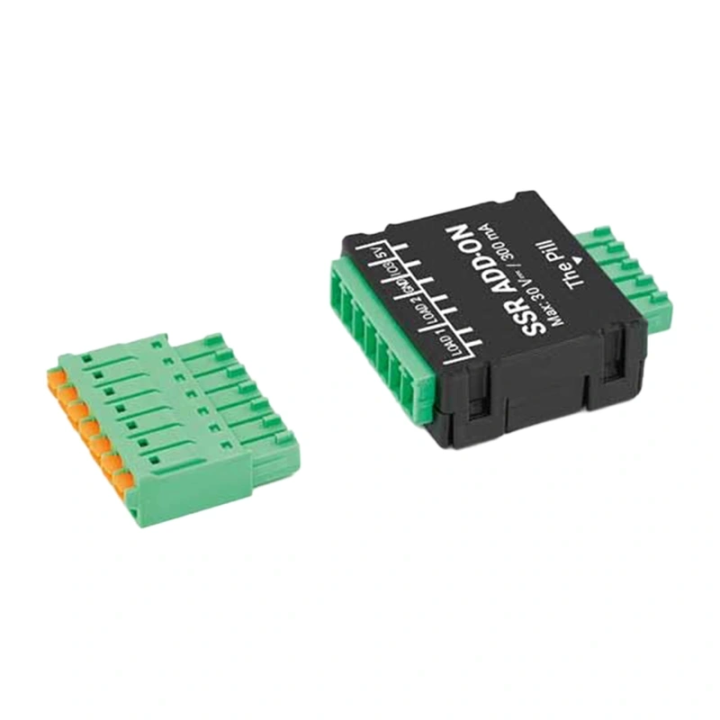

The Shelly SSR Add-on is a dual-channel expansion module designed to extend the capabilities of The Pill by Shelly. It provides two galvanically isolated solid-state relay outputs (LOAD1 and LOAD2), each capable of switching DC loads up to 30 V and 300 mA. This enables silent, reliable, and safe control of lighting, fans, and other low-voltage devices.

• Two independent SSR outputs – control two DC loads simultaneously with up to 30 V / 300 mA per channel.
• Galvanic isolation – ensures safe and noise-free switching.
• IO3 port – configurable as digital input or output (3.3 V logic) for added flexibility.
• Compact size – only 36 × 31 × 11.5 mm, easy to integrate into tight spaces.
• Low power consumption – less than 0.6 W for energy-efficient operation.

Note: A 5-Terminal Add-on (sold separately) is required to connect the module to The Pill by Shelly.
