8-дюймовая сенсорная панель ZigBee WiFi Ethernet-шлюз TUYA

8-дюймовая сенсорная панель ZigBee WiFi Ethernet-шлюз TUYA

Tuya
510,12 €
С НДС
Control your smart home with the Tuya T503 8" touch panel. Built-in ZigBee gateway, 2 light circuits, 2x25W audio, Android OS. Buy now!
Под заказ
Поделиться

Сообщите мне, когда товар появится в продаже

Interested in this product? Drop us an email and we will let you know when it's available for order.

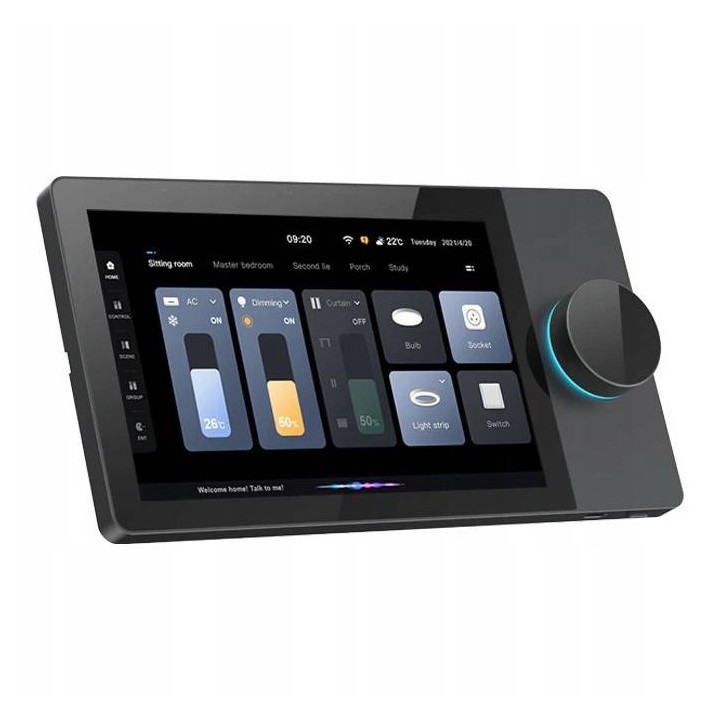

The Tuya T503 is an 8-inch multimedia smart touch panel that serves as the central hub for your smart home. It integrates a ZigBee gateway (supports up to 100 devices), WiFi 2.4 GHz, and Ethernet for reliable connectivity. With a crisp 1280x800 IPS display, it allows you to control lights, scenes, and multimedia effortlessly.

  • Central control: Manage all Tuya devices from one intuitive touchscreen.
  • Built-in ZigBee gateway: Connect up to 100 ZigBee devices without extra hubs.
  • Dual light control: Two physical outputs for direct lighting control.
  • Powerful audio: 2x25W amplifier for external speakers (4-8 Ω) plus a 2W built-in speaker.
  • Android OS: Install your own apps via USB/SD, preloaded with Spotify.
  • Voice control: Compatible with Amazon Alexa and Google Assistant.

The panel features a magnetic mount for easy detachment and USB-C power option. Ideal for multiroom audio, video intercom, and climate management. Note: Requires neutral wire and 110-250V AC supply.

  • Бренд
  • Код
    5904496828375
  • ean13
    5904496828375
  • MPN
    5904496828375

  • Dimensions
    250 x 133 x 11 mm
  • Communication protocol
    Bluetooth
    Ethernet
    RS-485
    Wi-Fi
    Zigbee
  • Ethernet port
    RJ45
  • Power consumption
    2 W
  • Mounting type
    In-wall
    In-wall (flush)
  • Wi-Fi standard
    2.4 GHz
  • Цвет
    Black
  • Memory
    8 GB ROM
  • Display size
    8 inch
  • Display resolution
    1280 x 800 px
  • Processor
    Quad-Core Cortex 1.5 GHz
  • Operating system
    Android 8.1
  • Operating voltage
    110-250V AC
  • Control method
    Rotary knob
    Touch
  • Dimmable
    Yes
  • Бренд
    Tuya
  • Model
    T503
  • Артикул
    5904496828375
  • Тип товара
    Smart touch panel with ZigBee gateway
  • EAN
    5904496828375
  • Тип устройства
    Switch
  • Compatible App / Ecosystem
    Smarteg Smart Life
    ZHA
    Zigbee2mqtt
  • Voice Control Support
    Yes
  • Built-in Speaker
    2W
  • Number of Gangs / Channels
    2
  • Neutral Wire Required
    Yes
  • Microphones
    4
  • Audio Output Power
    2x 25W
  • Audio Impedance
    4-8 Ω
  • Max ZigBee Devices
    100
