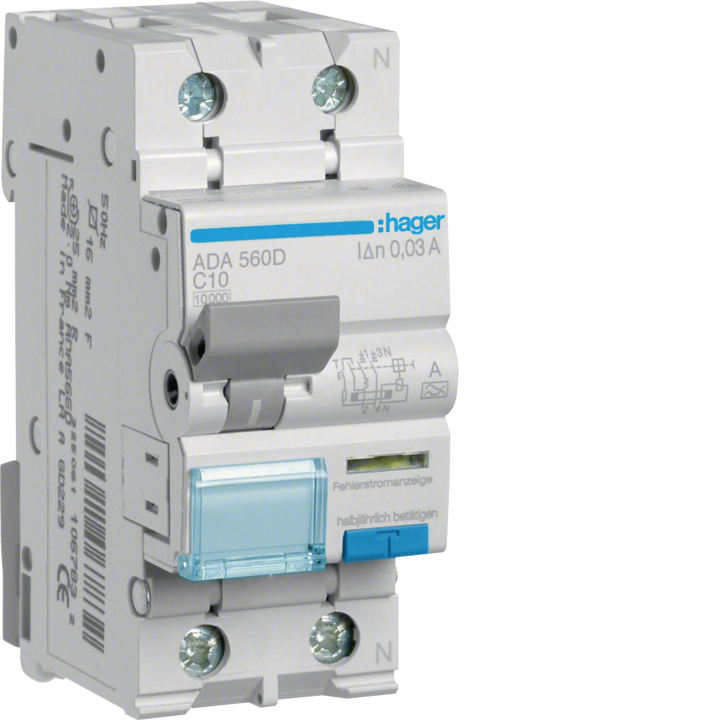

Автоматический выключатель Hager ADA560D RCBO 1P+N 10kA C-10A 30mA Type A

Автоматический выключатель Hager ADA560D RCBO 1P+N 10kA C-10A 30mA Type A

Hager
63,22 €
С НДС
Hager ADA560D RCBO combines overcurrent and residual current protection. 1P+N, 10kA, C-10A, 30mA Type A. Reliable safety for your electrical installation.
Доставка: 5 рабочих дней
Поделиться

The Hager ADA560D is a combined residual current circuit breaker (RCBO) that integrates overcurrent and earth leakage protection in a single compact device. Designed for 1P+N circuits, it offers a rated current of 10A with a C trip curve, a breaking capacity of 10kA, and a residual current sensitivity of 30mA Type A.

  • Combined protection: Overcurrent (MCB) and residual current (RCD) in one unit saves space in the distribution board.
  • High breaking capacity: 10kA ensures reliable interruption under fault conditions.
  • Type A RCD: Detects pulsating DC and AC residual currents for enhanced safety with electronic loads.
  • Easy installation: Fits standard 35mm DIN rail, 2 modules wide.

Ideal for residential and commercial applications where both short-circuit and earth fault protection are required. Hager quality ensures long-lasting performance.

  • Бренд
  • Код
    ADA560D
  • По наличию
    800 шт.
  • ean13
    3250611067818
  • MPN
    ADA560D

  • Монтаж
    DIN rail 35mm
  • Число полюсов
    1P+N
  • Trip curve
  • Rcd type
    A
  • Бренд
    Hager
  • Артикул
    ADA560D
  • Тип товара
    Дифавтоматы (RCBO)
  • EAN
    3250611067818
  • Model / Reference
    ADA560D
  • Breaking Capacity (Icn)
    10 kA
  • Rated Current (In)
    10 A
  • Residual Current (IΔn)
    30 mA
  • Rated Voltage (Ue)
    230V V
  • Rated Frequency
    50/60 Hz
  • Width (DIN Modules)
    2 module
