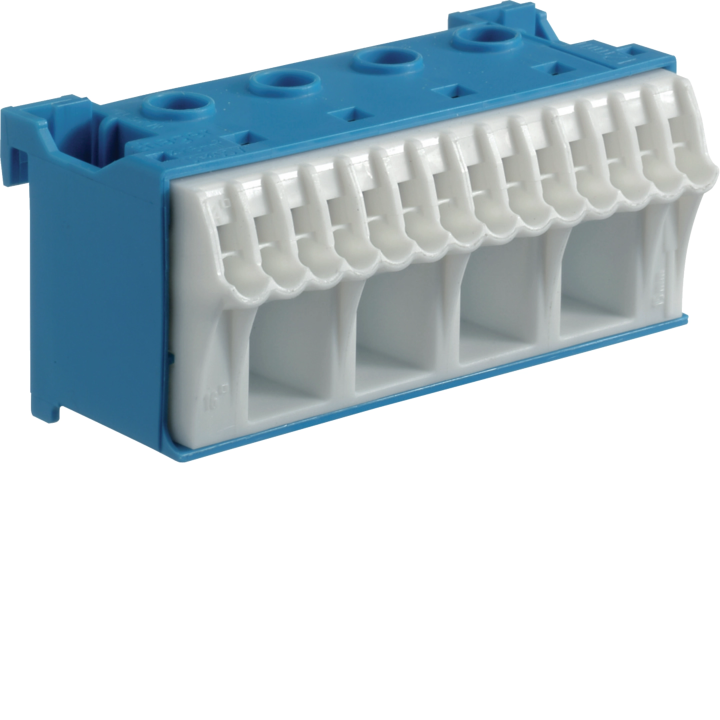

Клеммник Hager KN18N нейтральный, 18 способов подключения, 125A, винтовой зажим, DIN-рейка

Клеммник Hager KN18N нейтральный, 18 способов подключения, 125A, винтовой зажим, DIN-рейка

Hager
5,26 €
С НДС
Buy Hager KN18N neutral terminal block with 18 connections, 125A rated current, screw clamp, DIN rail mount. Ideal for distribution boards.
Доставка: 5 рабочих дней
Поделиться

The Hager KN18N is a high-quality neutral terminal block designed for use in electrical distribution boards. With 18 connection points, it provides ample capacity for organizing neutral conductors in commercial and residential installations. Rated at 125A and 400V, it supports conductor cross-sections from 0.5 to 25 mm². The screw clamp connection ensures reliable and secure wiring. Mounts easily on standard DIN rail. Manufactured by Hager, a trusted brand in electrical distribution.

  • 18 neutral connections for efficient wiring organization
  • Rated current 125A – suitable for high-load applications
  • Screw clamp terminals for secure conductor termination
  • DIN rail mounting for quick installation in distribution boards
  • Compact dimensions: 54 x 47 x 65 mm

Ideal for use in main distribution boards, sub-distribution boards, and industrial control panels where a reliable neutral distribution point is required.

  • Бренд
  • Код
    KN18N
  • По наличию
    800 шт.
  • ean13
    3250613849146
  • MPN
    KN18N

  • Housing material
    Polyamide (PA)
  • Монтаж
    DIN Rail
  • Rated voltage
    400V V
  • Подключение
    Screw clamp
  • Число полюсов
    1P
  • Номинальный ток
    125 A
  • Terminal type
    Distribution block
  • Contact material
    Copper
  • Бренд
    Hager
  • Model
    KN18N
  • Артикул
    KN18N
  • Тип товара
    Neutral terminal block
  • EAN
    3250613849146
  • Conductor Cross-Section
    0.5-25 mm²
  • Dimensions (W x H x D)
    54 x 47 x 65 mm
  • Number of Outputs / Channels
    18
